A1220 MONOLITH UPVT
A1220 MONOLITH UPVT - Ultimate Ultrasonic Pulse Velocity Tester
The all-rounder ultrasonic pulse velocity testing instrument for quality assessment of concrete structures with up to 15 meters thru-transmission and pulse-echo capability.
Description
An all-rounder ultrasonic pulse velocity tester (UPVT) for quality assessment of concrete compliant with valid international standards.

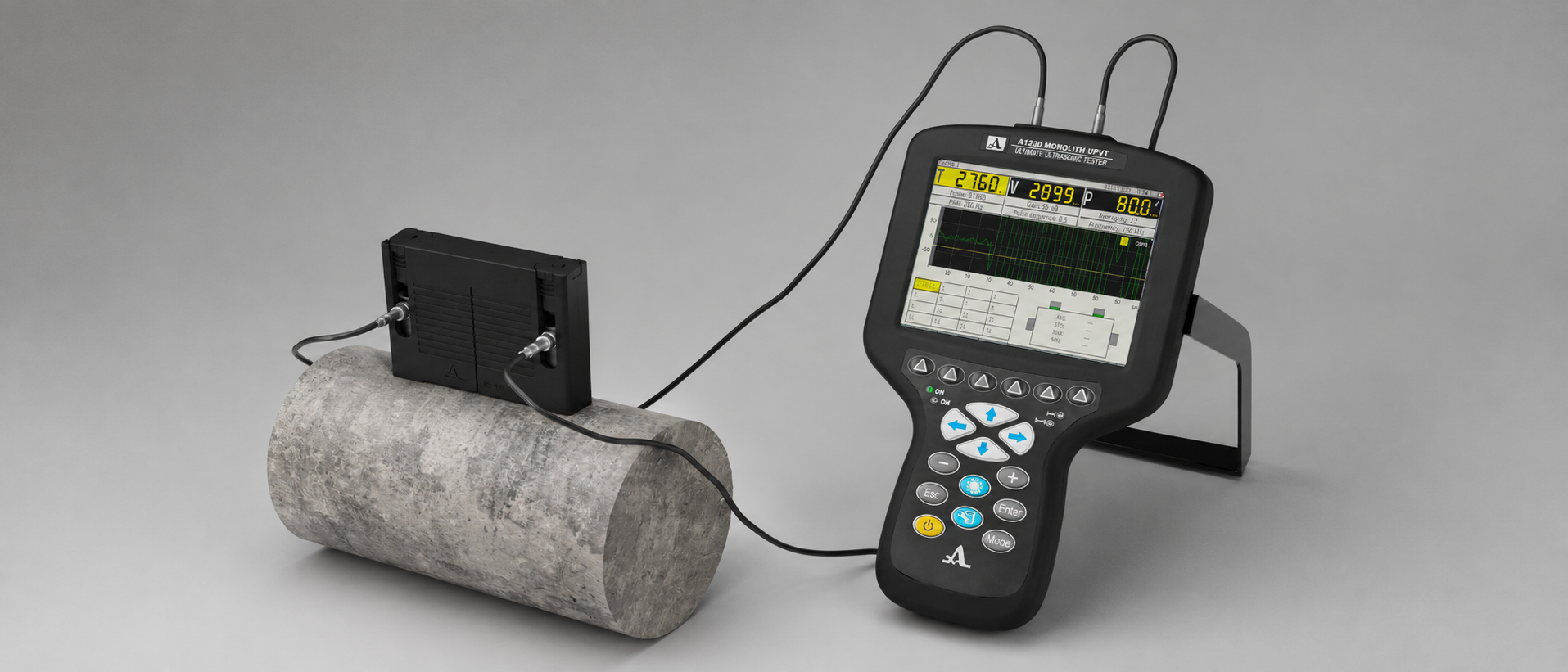

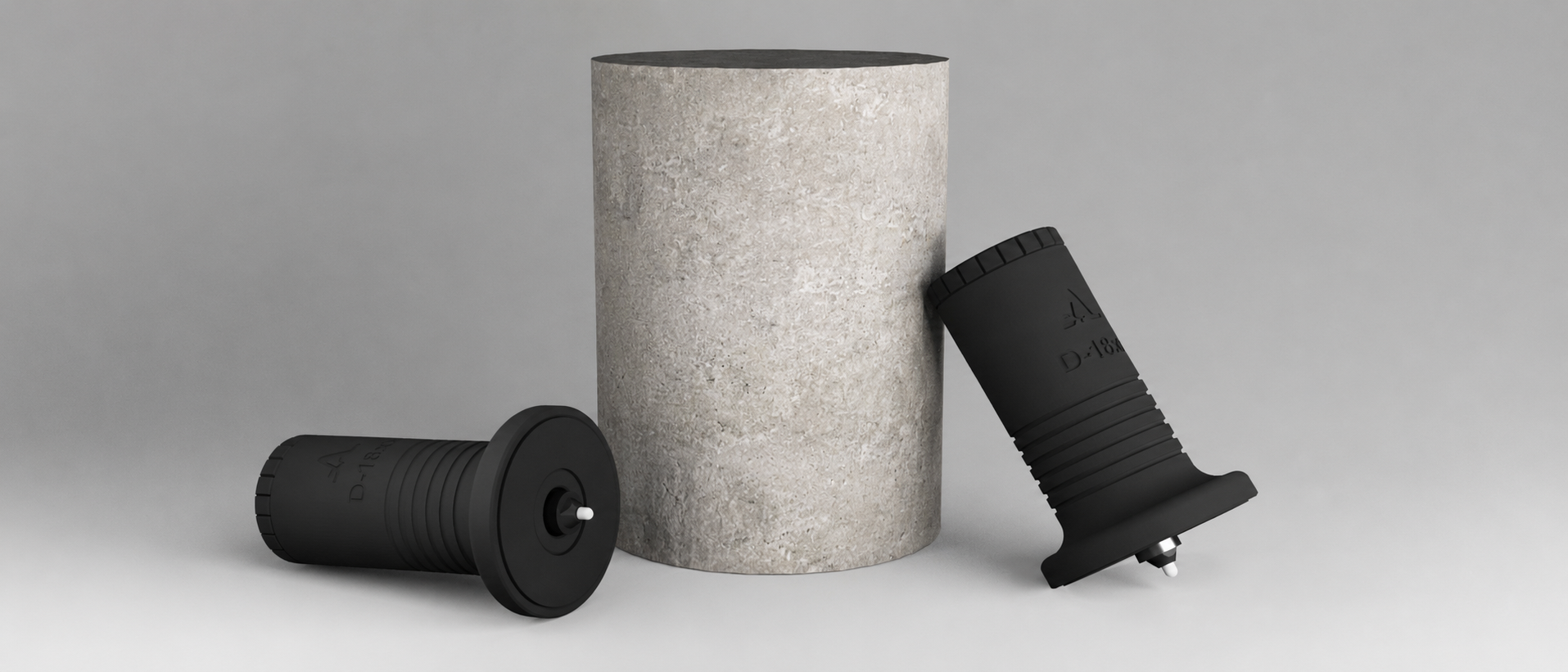

The instrument can drive the widest range of ultrasonic transducers in the frequency range from 20 KHz to 1 MHz for through-transmitting up to 15 meters of concrete. Apart of use of regular pietoelectric probes, Dry-Point-Contact transducers and transducer arrays can be applied for couplant-free operation on arbitrary surface condition.
An all-rounder ultrasonic pulse velocity tester (UPVT) for quality assessment of concrete compliant with valid international standards.
The instrument can drive the widest range of ultrasonic transducers in the frequency range from 20 KHz to 1 MHz for through-transmitting up to 15 meters of concrete. Apart of use of regular pietoelectric probes, Dry-Point-Contact transducers and transducer arrays can be applied for couplant-free operation on arbitrary surface condition.
APPLICATIONS

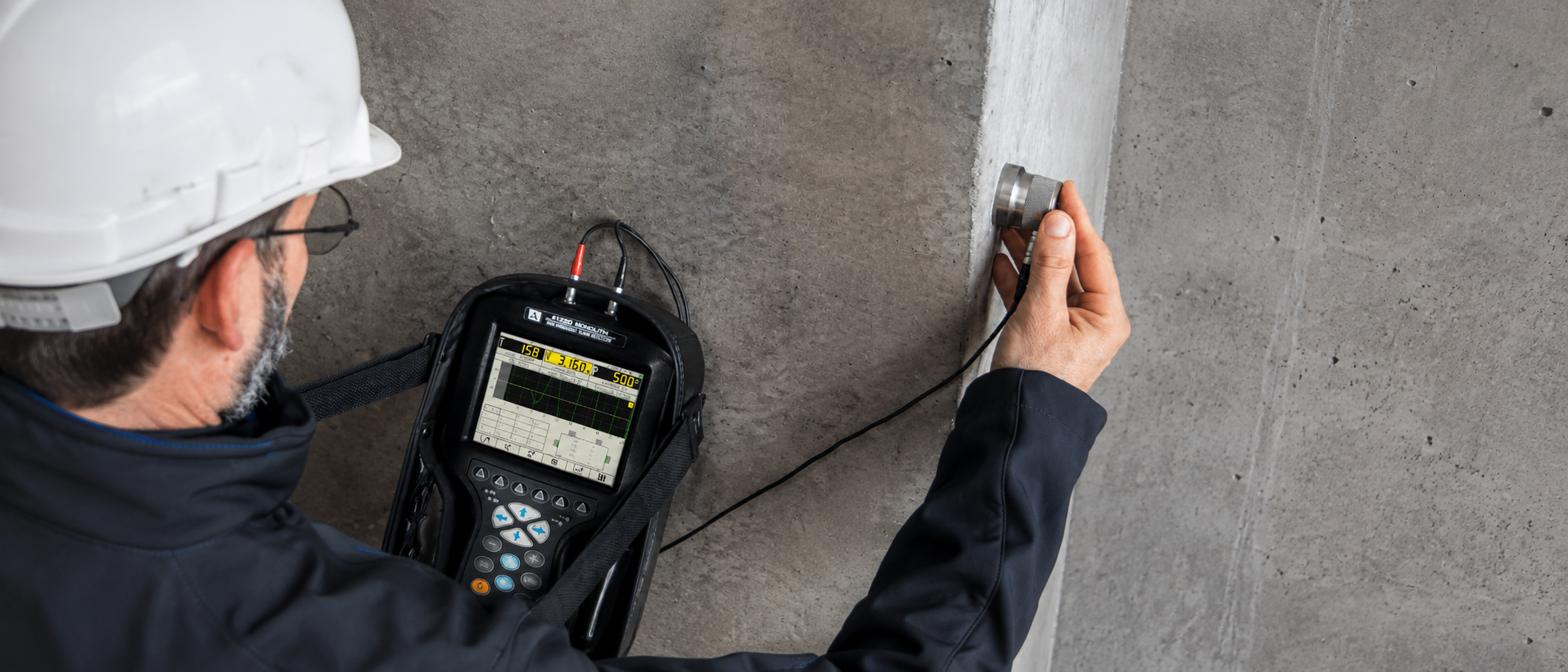

One instrument — multiple inspection tasks
Concrete Strength
Crack Depth
Evaluation
Estimation of the depth of surface-opening cracks using indirect UPV methods.
Elastic Properties
& Material Condition
Evaluation of elastic properties, anisotropy, porosity, fissuring and material ageing to assess structural performance.

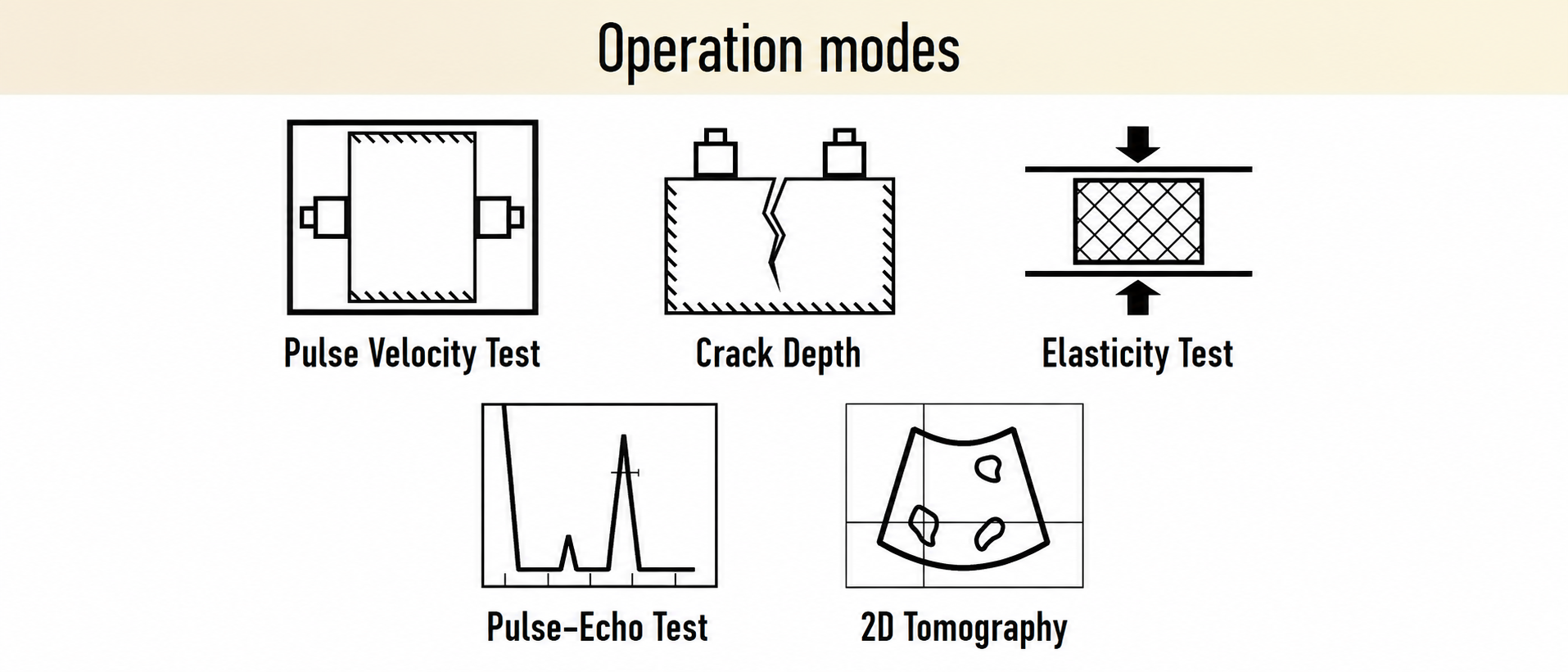

Pulse-Echo
Imaging
One-sided inspection and 3D imaging of internal structure using SAFT principle for detailed assessment.
Broad Material Range
Concrete, stone, ceramics, wood, masonry, plastics, polymers, glass, composites, rubber
Special Transducers
25 kHz transducers for high penetration in thick structures.
250 kHz transducers for small specimens and concrete cores.
Smart Operation

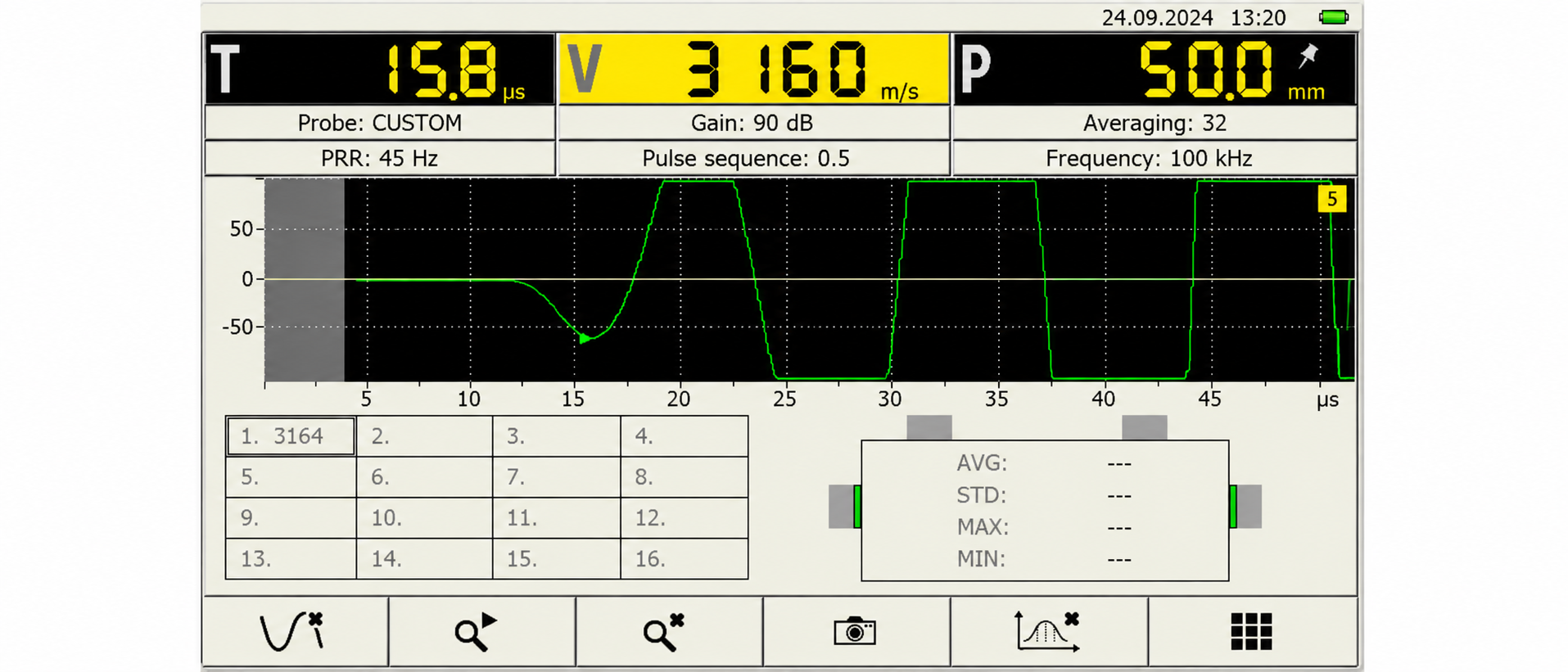

Automatic gain control for easy-going in-situ setting and operation.
On-board SonReb method.
Data Visualization
Powerful INTROVIEW CONCRETE software for advanced data visualization and reporting.
(in delivery volume).
High Penetration
Extraordinary high penetration ability when using 25 kHz transducers.
Standards & Compliance
DIN EN 12504-4
BS 1881 : Part 203 : 1986
ASTM C597 – 16
IS 516 (Part 5/Sec 1) : 2018
Specification
Specification
| Measurement modes | Transmission / pulse-echo |
|---|---|
| Operating frequency range, KHz | 20 – 1.000 |
| Transit time, μs | 0.1 – 2.000 |
| Measurement resolution, μs | 0.1 |
| Receiver gain, dB (adjustable with 1 dB step) |
0 – 100 |
| Inspection range (depending on concrete quality), meters |
up to 15 |
| Operating time with one battery charge, hours | 14 |
Delivery kit

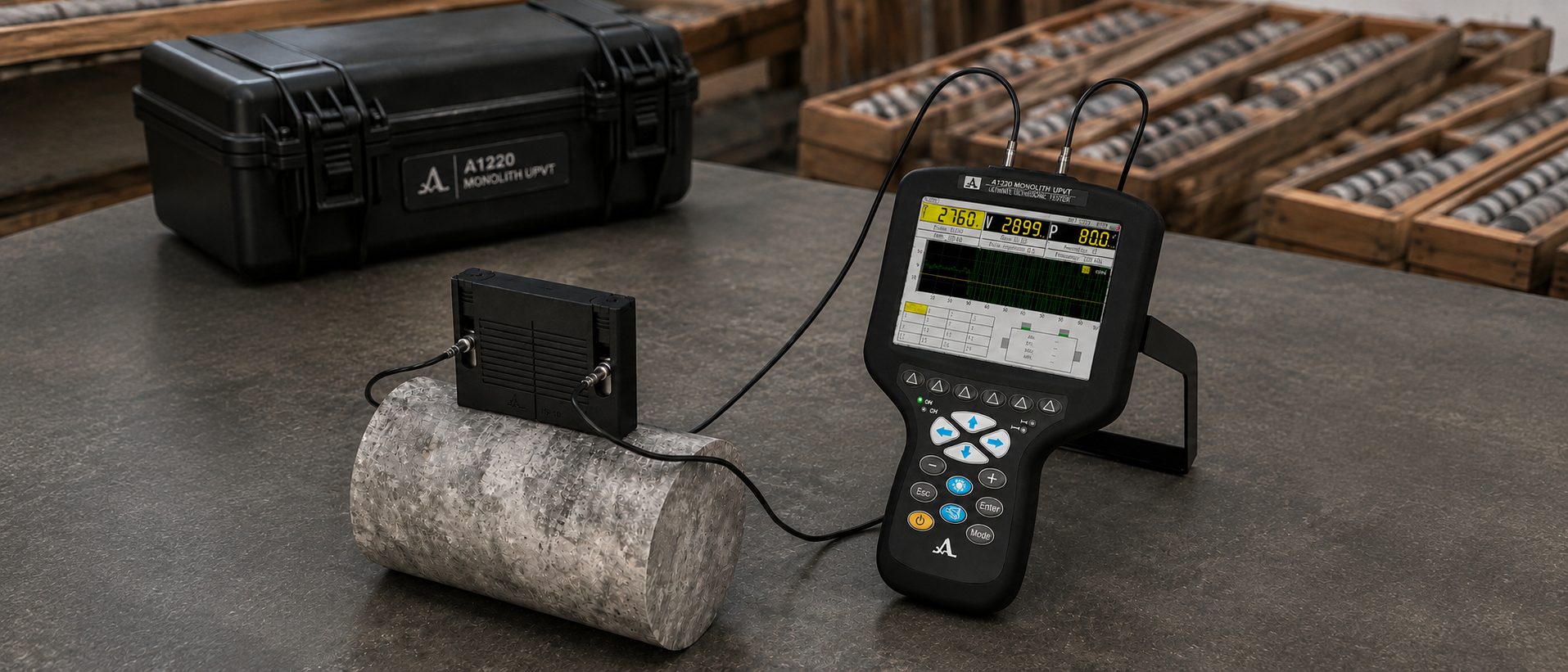

A1220 MONOLITH electronic unit
USB A-Micro B cable
Net adaptor with cable 220V-15V
In-situ protective soft cover D12
Carying map case D12
Hard case M20
* Further ultrasonic transducers for P-wave and S-wave transmission
A1220 MONOLITH electronic unit
USB A-Micro B cable
Net adaptor with cable 220V-15V
In-situ protective soft cover D12
Carying map case D12
Hard case M20
* Further ultrasonic transducers for P-wave and S-wave transmission
